Three kinds of LED light sources
Maximum 6500 lumen
Maximum 70m submerged
Four-level battery indicator
Type-c charging
Battery indicator
70m waterproof
Triple circuitprotection
Introduction:

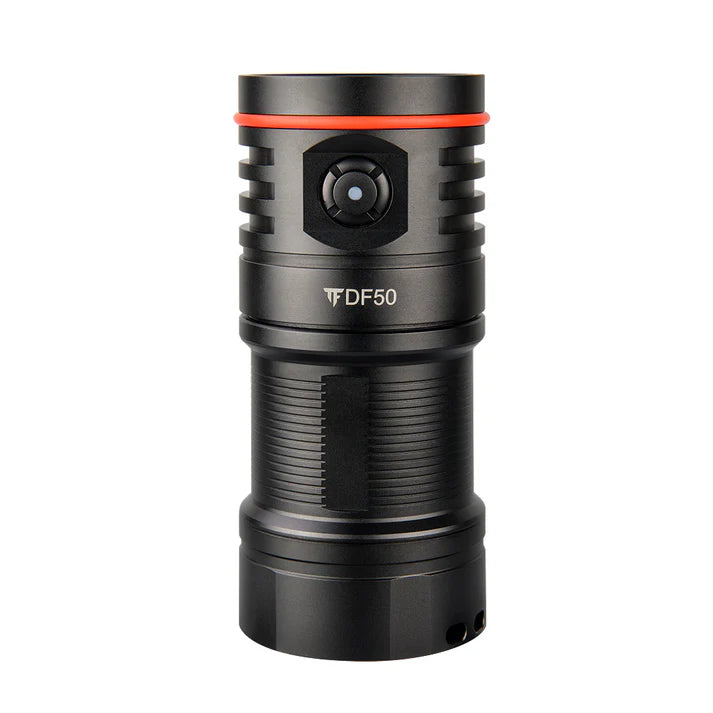

Product name: DF50 Charging method: TYPEC (on battery)
Size: 132*§60
Weight: Net weight about 300g (excluding battery, including battery g)
Maximum lumen: 6500lm
Maximum diving depth: 70m
Battery life: 205 minutes
White light high brightness: 6500 lumens
White light low brightness: 1000 lumens
Range: high brightness 105m, low brightness 43m
Operation:
1. Remove the insulation sheet before use;
2. Anti-accidental touch: Press twice to enter the anti-accidental touch lock mode. At this time, the click will only flash twice slowly. Press the button twice to release it;
3. Press and hold the switch for 0.5s, and press to switch the gear in the order of red light, purple light, high brightness, and low brightness;
4. Press and hold for 2s in the off state to enter the SOS mode; gear memory function

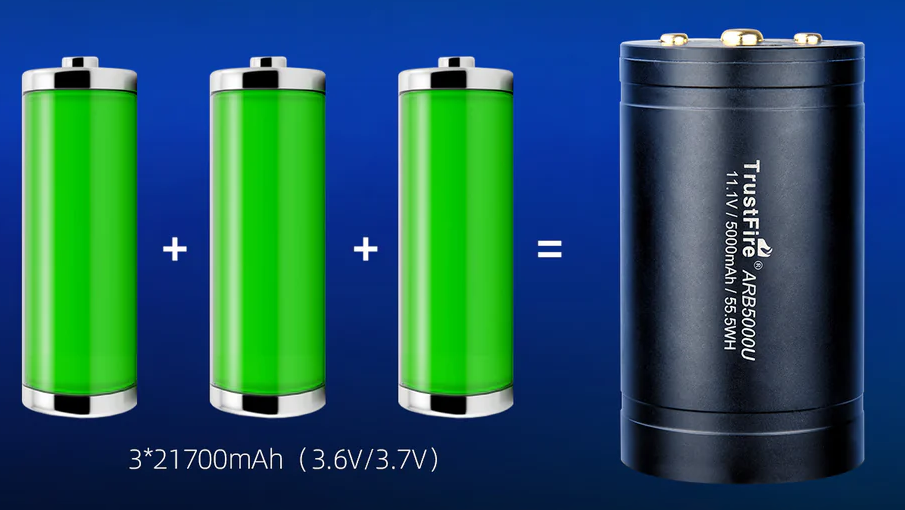

Powered by a battery pack consisting of three 21700 batteries in series, 11.1V 5000mah 55.5WH

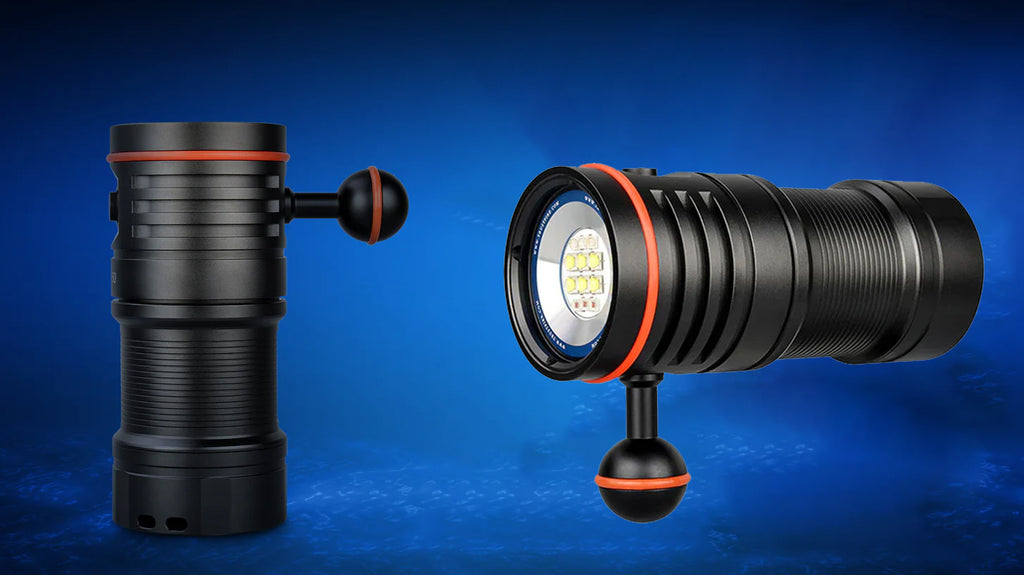

DF50 is a diving flashlight especially for scuba diving.cave diving , free diving and other underwater sports lighting
SCUBA DIVING+CAVE DIVING+FREE DIVING
DF50 adopts three different LED light sources and one-button neck shape design :The three light sources are: ultraviolet light,red light, white light, exploring the sea world interest，discovering the mysteries of the ocean.
WHITE LIGHT+RED LIGHT+UV LIGHT
In white light mode, the maximum brightness can reach 6500 lm,the maximum range up to 105m.
DF50 has special diving protection design, it make you fell reliable while using under 7Om water pressure.
The lamp holder structure adopts double-sided anti-reflection coating tempered glass lens to effectively reduce light loss.

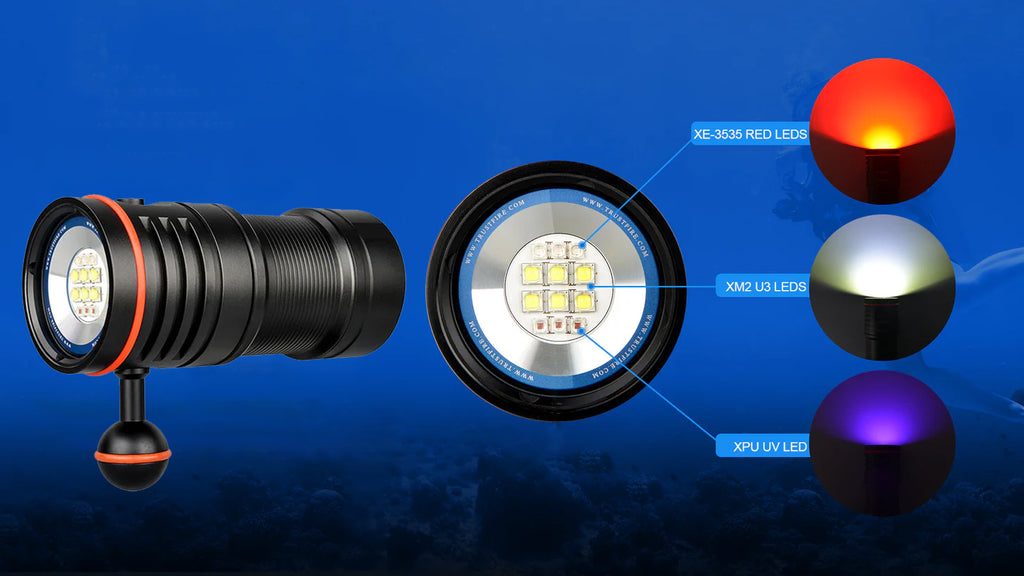

WHITE LIGHT USES 6 XM2 U3 LEDS
White light (flood light) color temperature 6000k, up to 150 degrees White light (flood light) color temperature 6000k, up to 150 degrees underwater lighting.
RED LIGHT USES 3 XE-3535 RED LEDS
620nm wavelength, providing pure and efficient red light, suitable 620nm wavelength, providing pure and efficient red light, suitable Photographic fill light for fishes that are not sensitive to red light.
VIOLET LIGHT USES 3 XPU UV LED LEDS
Wavelength 395nm, pure ultraviolet light, suitable for shooting underwater Wavelength 395nm, pure ultraviolet light, suitable for shooting underwater
Double-sided anti-reflection coatingtempered glass lens

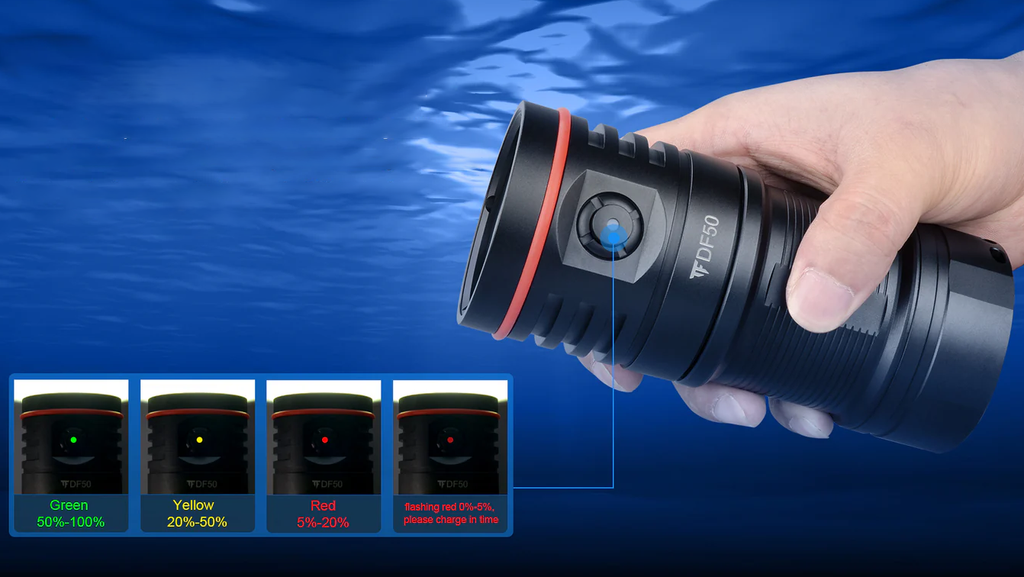

There is a battery indicator on the neck of the flashlight. When it is turmed off, click the switch, the battery indicator will light up, and it will automatically go out after 2 seconds. Different colors represent different remaining power.
Green:50%-100%
Yellow:20%-50%
Red:5%-20%
flashing red-please charge in time:096-5%

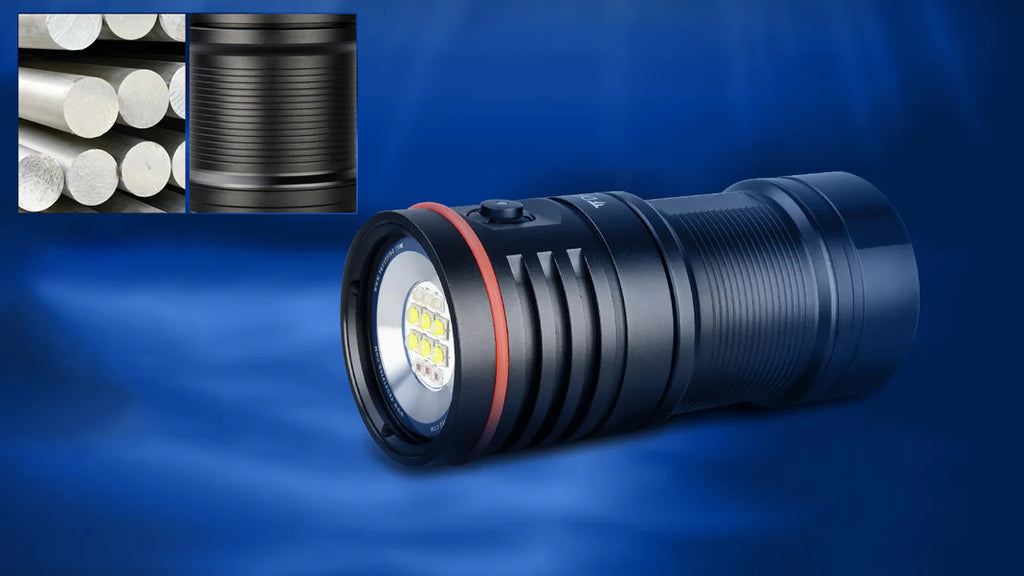

It is made of aerospace aluminum and has a hard anodized surface with anti-wear treatment, the anti-slip barrel design is easy for you to hold an electric in one hand.
HARD ANODIZED SURFACE
AVIATION ALUMINUM+NON-SLIP DESIGN
Capacity: 5000mAh Voltage: 11.1V Battery pack power: 55.5WH
TYPE-C CHARGING PARAMETERS:
A. Voltage input range: 3-22V
B.Support charging protocol: PD2.0/PD3.0/PPS/
C.Charger voltage recognition: 20V/15V/12V/9V/5VMaximum charging power:
(input)-22V/3.5A; (output)-22V/3A
BATTERY PACK PROTECTION FUNCTIONS:
A.Over current protection
B. Over discharge protection
C. Over charged protection
D. 0V battery can be repaired
Note:The above parameters are onlyapproximate values.The values are obtained by testing in the laboratonyenvironment of therechargeable battery pack. The data may change according to using environment and battery changes. Trustfire-ARB5000U
Rechargeable lithium-ion battery with protection board (Trustfire-battery pack series and so on)
Wamning: The 21700 batery is an industialbatery, not a safe civiian bateny.When bateries in poor qualty orimpropery used (short circuit, high temperalure, etc.).it may bum, explode and endanger personal and propery safely. Use lithiumion batteries with excelent quaty and protective plates to reduce risks in certain procedures.Trustfire series battery packs are recommended.
| Violet light | Red ligh | High mode | Low mode | |
| Brightness | 8.5LM | 391 lm | 6500 lm | 1000 im |
| Run time | 12Hours | 5.2Hours | 205Minutes | 6.8Hours |
| Range | \ | \ | 105m | 43m |
| Light intensity | \ | \ | 2756CD | 462CD |
Anti-drop height:1M
Waterproof:70 meters underwater
Flashlight size:132.55mm (length) 59.6mm (tube head)
Net weight:294.6g (exclude battery)
Additional functions:Intelligent temperature control, low-Woltage warning,anti-reverse design, power indicator

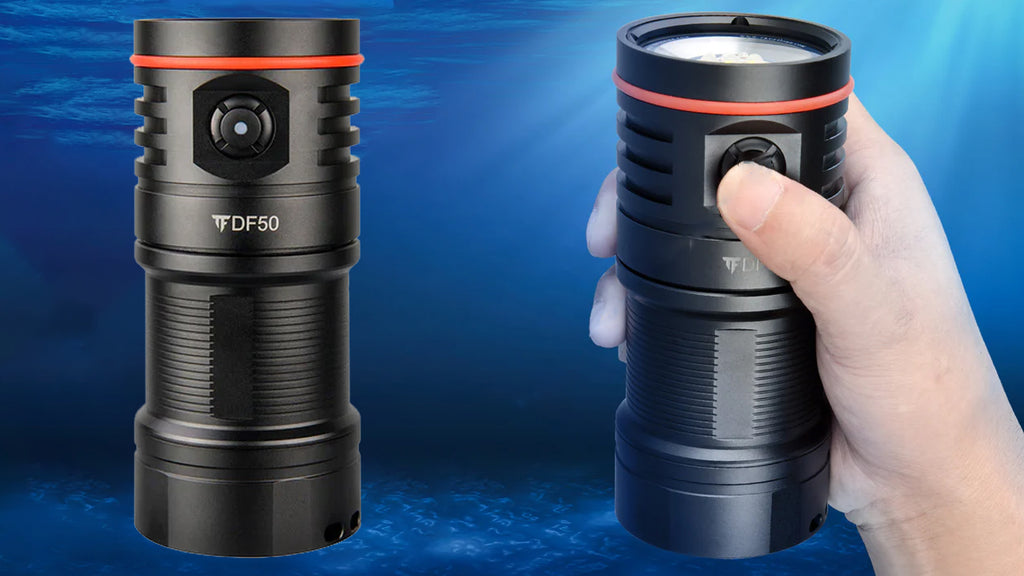

Professional compression-resistant button design
ON/OFF:
Under unlocked mode,long press the side switch for 0.5 seconds to tum on/off
SWITCH WORKING MODE:
When flashlight is ON, click the side switch to change modes from violet light mode→red light mode→high mode→low mode
SOS MODE:
When the flashlight is OFF, long press the switch for 2 seconds to enter into SOS mode,click the switch to return to the working mode.
MEMORY MODE:
Flashlight will memorize the last time working mode automatically before ittum off. And go to the last time working mode for next turn on.
ACCIDENTALLY TOUCH PREVENTION(LOCK/UNLOCK):
@Lock: When flashlight is off , double-click quickly switch into lock mode,it will flash twice in low light and locked.
@Unlock: When fashlight is locked mode, double-click quickly to unlock and switch into the working mode.
